Mobile X-Ray

Description

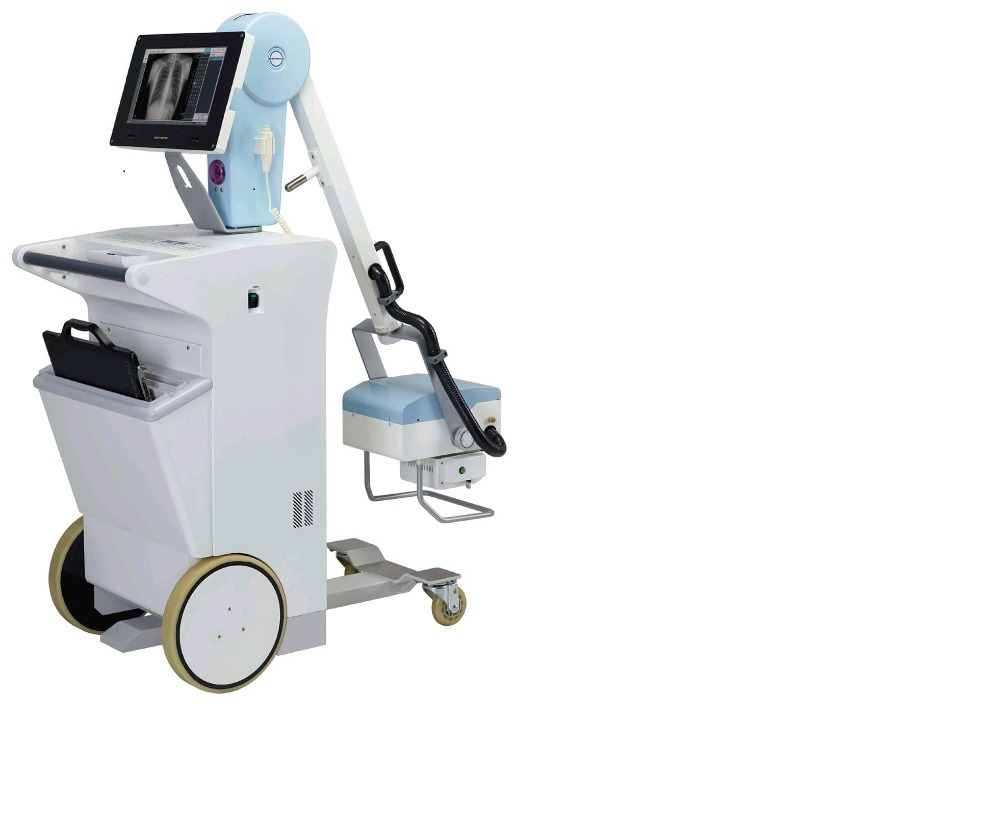

ACEMOBILE-510D

Various Digital Upgrade Package:

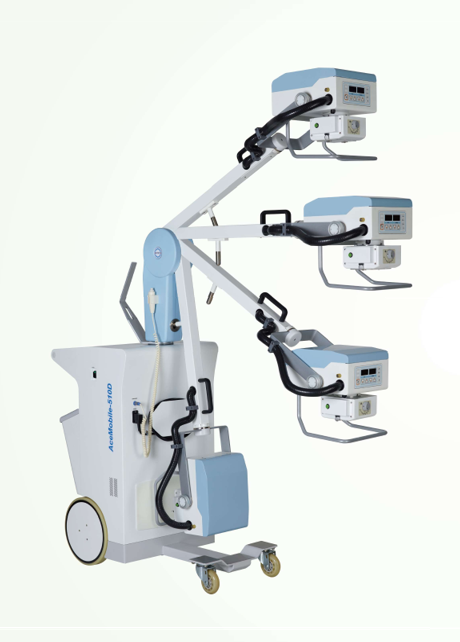

1. Arm Free Stop Function at Any Position
2. High Frequency Inverter System
3. Powerful 100mA Output with Compact Size
4. Two Operation Panel (Main/Header)
5. Wide Range of APR (96APR)

Specifications:

• Power Requirements

Single phase 220 VAC, 50/60 Hz

• X-Ray Generator

1. High frequency inverter control system
2. Adjustable tube voltage: 40 kV – 110kV (1kV Step)
3. mAs range: 0.32 mAs – 100mAs
4. Max output power: 5.1 kW @ 60kV 85 mA at input 220 VAC

• X-Ray Tube

1. Anode tube: Stationary Anode
2. Target angle: 15
3. Focal spot: 1.8mm
4. Anode heat storage capacity: more than 30 kJ
5. Max. tube voltage / current: more than 110kV / 100mA

• Others

1. X-Ray tube support form: arm free stop
2. Collimator lamp illumination: more than 100 lux
3. SID scale: 2m
4. Gross weight: 160kg
