Description

Overview

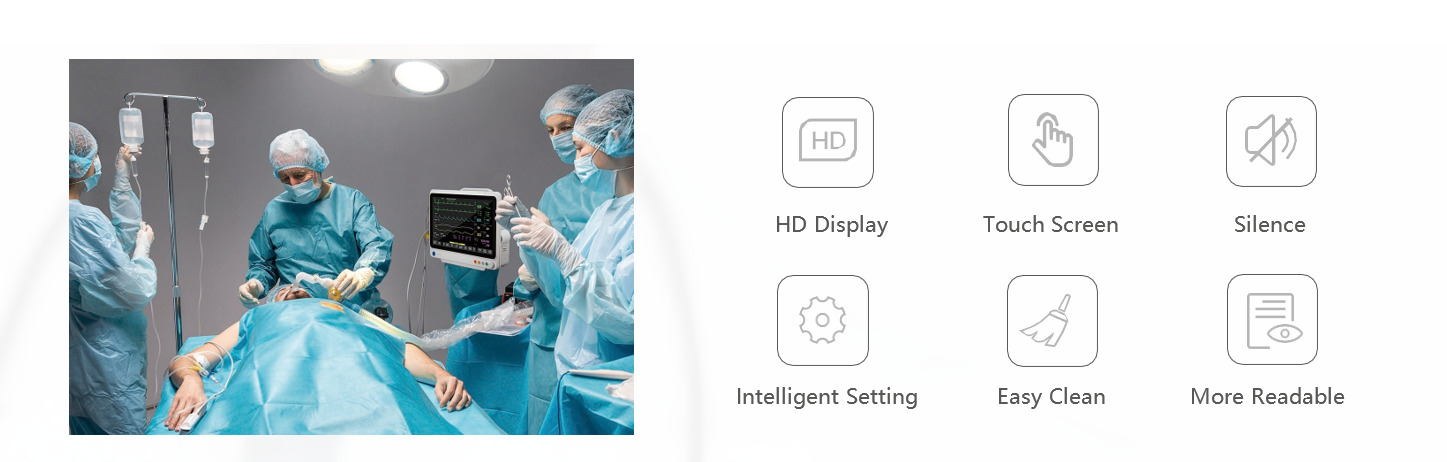

The W12/W15 series patient monitor series are designed to meet daily clinical needs and seamlessly integrate into the hospital workflow. Modular design, Module interface can meet the needs of different parameters according to the clinical choice module. A variety of monitor models have more and more accurate practical clinical application values. In acute care, patient monitors must be reliable, easy to use, have advanced parameters, and allow access to data when needed. When transporting patients, the equipment should be easy to carry. The W12/W15 series of patient monitors are lightweight, powerful, and intuitive in user interface. They are the best choice for acute, in- and out-of-hospital transfers.

Features:

• The monitor adopts a modular design and a compact structure to meet the needs of various different parameter It is suitable for adults, children and newborns.
• Standard parameters: SpO₂ , ECG, PR, RESP, NIBP,2*TEMP.
• Optional parameters: EtCO₂ , 2*IBP,
• 1inches/15.6inches color LED screen with touch screen and /or rotator knob.
• Upgradable module is interchangeable (plug and play type).
• Capable to visualize 6 or more Support color coding for different waveform.
• ST segment analysis with ST trend with continuous display of ST value on screen.
• Multiple screen layout to view big font size in numeric and
• Trending facilities for up to 360 hours of both graphical & numerical along with event review facility for all parameters and full waveform disclosure
• Different visual alarm with color coding and audible alarms for various parameters with three levels of volume
• Support HL7 protocol to access the central workstation Energy-saving, low-power design, extending battery life Configure noise reduction fan to ensure a quieter and cleaner environment Arrhythmia detection and analysis in various leads.
• A inbuilt battery backup of 4 hours

Optional:

• 12Lead ECG; CO₂ (Side stream CO₂ , Tini-Stream CO₂ , Main- stream CO₂) ; IBP (IBP1/IBP2, IBP3/IBP4) ; C.O ; ICG ; AI; AG; EEG (2/4 channels); NMT

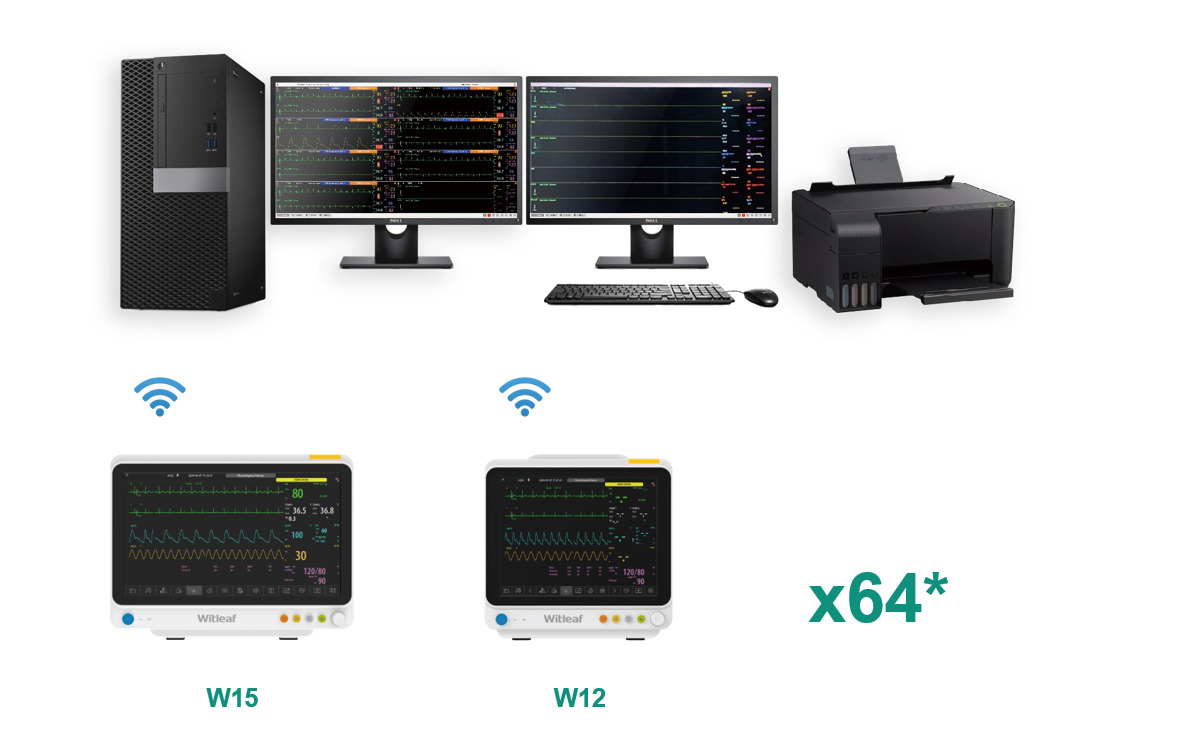

Central Monitoring System

• Central Monitoring System supports up to 64 beds or 64 patients across clinical units at the same time. 72 hours of 64-channel holographic physiological waveform storage and review.
• Provides review of up to 240 hours trend data storage, 720 alarm events per beds.
• Bi-directional communication with W12/W15 Series monitors for enhanced patient care.

Specifications

• SpO2:

SpO₂ Range: 0~100%

SpO₂ Accuracy : 70~100%,±2% <70%,Undefined PI Range : 0~20%

PVI Range : 0.01%

PR Range : 25-300bpm PR Accuracy : ±3bpm

• ECG:

ECG Range : 0.15~5.5mV ECG Resolution : 2.36uV/LSB

HR Range : 15~300bpm(adult) 15~350bpm(child/neonate) HR Accuracy : ±1bpm or ±1% (whichever is greater)

RR Range : Adult: 0~120bpm Pediatric, Neonate: 0~150bpm RR Accuracy : 15~150rpm : ±2rpm or ±2% <15rpm: Undefined

•  TEMP:

Range: 0-50°C

Accuracy: ±0.1°C

Resolution: 0.1°C

• NIBP:

Pressure Range         0~300mmHg

Pressure Accuracy    ±2mmHg or ±1% of reading (take the larger value)

Resolution                  1mmHg

SYS Range                 Adult:40-270mmHg     Pediatric:40-235mmHg    Neonate:25-130mmHg

DIA Range               Adult:10-210mmHg     Pediatric:10-200mmHg     Neonate:10-90mmHg

Mean Range            Adult:20-230mmHg         Pediatric:20-225mmHg    Neonate:15-100mmHg

Accuracy                  The mean deviation<±5mmHg         The standard deviation<8mmHg

• IBP (optional):

Pressure Range         -50~400mmHg

Accuracy                   ±3mmHg or ±1% of reading

PR Range                 20-350bpm

PR Accuracy           ±2bpm or ±2% (whichever is greater)

• CO (optional):

Range                      0.20~20.00L/Min

Accuracy                 ±5%

• EtCO2 (optional):

CO2 Range             0~20.0vol%

CO2 Accuracy        0~12vol%:±(0.2vol%+2%of reading)     12~20vol%:±(0.2vol%+6%of reading)

AwRR Range         0~150rpm

AwRR Accuracy   mainstream:0~150rpm,±1rpm   Sidestream:0~70rpm,±1rpm >70rpm,Undefined



Patent

SpO₂

…………………………………………………………………………………………………

Patent           Patent No: ZL 2019 1 0907433.8

ZL 2019 2 1510989.5

ZL 2019 2 1596814.0

RESP

………………………………………………………………………………………………

Patent            Patent No: ZL 2014 1 0429201.3

ZL 2014 2 0489133.5

ZL 2021 2 0480587.6



EtCO₂

………………………………………………………………………………………………

Patent           Patent No: ZL 2018 1 0713045.1

ZL 2018 1 0713152.4

ZL 2020 2 1177039.8

ZL 2019 2 0722093.7

ZL 2017 2 0804416.8

ZL 2017 2 0293754.X



ECG

………………………………………………………………………………………………

Patent            Patent No: ZL 2015 0484280.2

ZL 2019 1 0064711.8

ZL 2017 1 0691935.2

ZL 2021 2 0480587.6
